Hardtails are lighter, which some MTB riders prefer, but they are also more versatile and require less maintenance. A hardtail can be used as a commuter, and this one even features mounts to build it up as one.

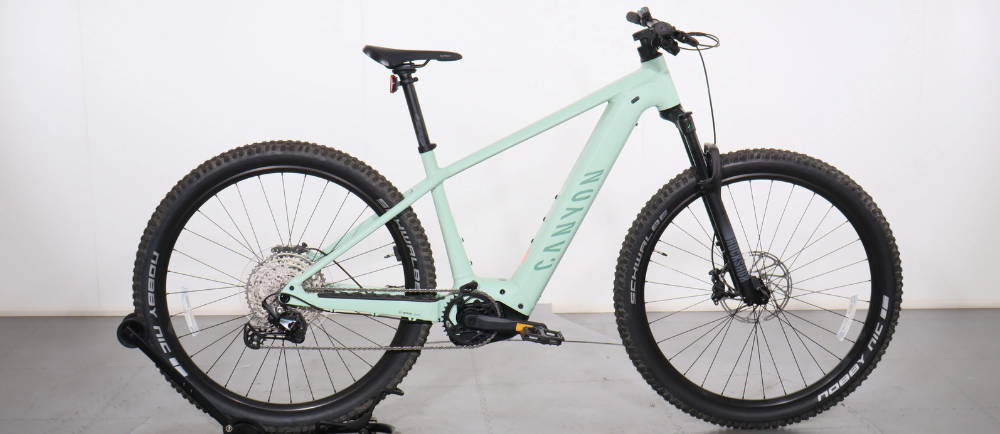

Canyon Grand Canyon:ON E-Bike Review
Written by: Nick Cowie | October 4, 2026 | Time to read: 5 min
Hardtail mountain bikes are designed for versatility and adventure. Both of those qualities are brought to the next level when a motor is involved. The Canyon Grand Canyon:ON is a Class 1 e-bike that bridges the gap between trail explorer and commuter.
More about the Author: Nick Cowie
Nick is a writer with seven years of experience in the cycling industry. In his free time, he enjoys swimming, Jiu Jitsu, and spending time outdoors.
Known for their non-electric bikes, Canyon brings the power of Bosch to their expertly engineered bikes to create some of the top adventure machines on the market. The Canyon Grand Canyon:ON is one of the most versatile of the group. Designed as a hardtail Class 1 electric mountain bike, this bike can be used as anything from a commuter to a trail adventure bike. This e-MTB is a great choice for anyone, from entry-level riders who want an e-Bike that can do it all, to tech lovers who want a fully integrated system.
👋 Welcome to Upway!
Upway is your top destination for buying and selling e-Bikes online. Discover your next e-Bike at up to 60% off retail prices, available in new or like-new condition.
Table of Contents
Canyon Grand Canyon:ON Specification Highlights
The Canyon Grand Canyon:ON spans multiple generations and comes in different variations. While some of the specs may vary, the most important details are always the same. Regardless of generation, the Grand Canyon:ON remains a hardtail Class 1 e-Bike with 120mm of front travel and a Bosch mid-drive motor.
Key Specifications:
- Frame: Canyon Grand Canyon:ON Category 3 hydroformed 6061 aluminum alloy hardtail frame
- Fork: RockShox Judy Silver, SR Suntour, or Fox 34 World Fork with 120mm travel
- Motor: Bosch Performance Line CX mid-drive (Gen 4 or Gen 5 configurations depending on production year)
- Motor Torque: 85 Nm standard torque (software-upgradeable up to 120 Nm of torque in the app)
- Maximum Assistance: 340 percent maximum assistance
- Peak Power: 250W nominal power and 600W to 750W absolute maximum peak power
- Battery: Bosch PowerTube integrated 600Wh, 625Wh, 750Wh, or 800Wh removable battery pack
- Optional Range Extender: Bosch PowerMore 250Wh range extender supported on newer generations
- Estimated Range: 40 to 75 miles depending on selected battery capacity and assist mode
- Tire Clearance: Optimized for 29x2.6-inch high-volume off-road tire dimensions
- Drivetrain: 12-speed Shimano Deore or Shimano Deore XT mechanical gear systems
- Weight: 51 lbs to 53.5 lbs total weight depending on battery and frame size configurations
What bicycle tech is included on the Grand Canyon:ON?
The Canyon Grand Canyon:ON is a true mountain bike at its core, taking a lot of the top tech in the traditional Canyon lineup and applying it to an electrified model. This bike would be extremely versatile even without a motor, so the addition of a drive unit makes it unstoppable.
- Frame: Canyon used their Category 3 hydroformed aluminum alloy to create the frame of the Grand Canyon:ON. This gives it a rugged and durable platform that is light enough to be fun on the trail. It has a progressive geometry that includes a slack 65.5-degree head tube angle and a low standover height, contributing to stability during descents.
- Hardtail Configuration: When engineering a hardtail, it’s always important to find other places to focus on compliance. The Canyon Grand Canyon:ON has a suspension fork with 120mm of travel. Rider experience is also enhanced by a 12-speed Shimano Deore XT groupset, which provides a huge range of gears to make sure you can adapt to any terrain or elevation.
- Rear-World Utility: The frame is equipped with several mounting points to assist with utility additions. Feel free to bolt on a kickstand, add fenders, mount luggage racks, or even add a trailer hitch. The Canyon Grand Canyon:ON is designed to serve as anything from a trail bike to a commuter bike, so it is ready for all riding styles.
💸 Want to sell your electric bike?
- In case you didn't know yet, you can sell your e-Bike to Upway and get your cash in 3 simple steps.
- Want an estimation -> It takes only 2 minutes to complete this form
What electronic features does the Grand Canyon:ON include?
Canyon centers its electric bikes around the integrated and reliable Bosch ecosystem, giving you a simple and effective way to power your ride. The Canyon Grand Canyon:ON comes as a Class 1 electric bike, meaning it is pedal-assist only and the motor cuts out at 20 mph. Class 1 is great for electric MTBs because it helps you maintain a natural ride feel that just offers an extra kick.
- Drive Unit: The heart of the Canyon Grand Canyon:ON is its Bosch Performance Line CX motor. This mid-drive system is available in different generations depending on what model year of the bike you get. It produces up to 85 Nm of torque and up to 750 W of peak power, meaning that there is no climb that will be a problem for your bike. It gets its power from the Bosch PowerTube battery, which can be removed from the frame for easy charging.
- Anti-Theft: Unfortunately, e-Bike theft is a big issue. Companies like Bosch have been coming up with solutions to put a stop to it. The Bosch e-Bike Flow smartphone app includes a Bluetooth locking system. When enabled, it emits a loud alarm and disables motor functionality if the bike is moved without the owner’s phone nearby.
- Safety Features: Trail riding can present certain hazards, and that risk can get higher when a motor is involved. Bosch supports front-wheel ABS braking technology through an electronic controller and wheel sensors to prevent front-wheel lockups and skids during sudden stops. This is especially valuable for riding on loose dirt, gravel, or any other slippery terrain.
Who is the Canyon Grand Canyon:ON for?
There is a wide range of riders that can get a lot of use out of the Canyon Grand Canyon:ON. Entry-level trail riders will find that it is affordable and easy to ride while still offering a high-level riding experience. It is just as good for more experienced riders who want a low-maintenance design or versatility through different styles of riding. The Grand Canyon:ON is even great for tech lovers, offering an integrated Bosch ecosystem that keeps you connected through your smartphone app.
Liquid error (snippets/article.gem-635170095331-1-template line 1): include usage is not allowed in this context
Frequently Asked Questions
What are the benefits of hardtails?
Why is Class 1 good for mountain bikes?
Electric mountain bikes are usually Class 1 because of the feel it provides. MTB riders aren’t looking for a bike that is centered around the motor, but rather just some extra assistance on a ride that they are in charge of.
What are the benefits of Bosch integration?
When all of the electronic components on your bike are made by Bosch, it is easy to use the app to control everything. Bosch also has anti-theft features, custom settings, and firmware updates at your fingertips.
Key Takeaways
- Benefit from hardtail versatility: Hardtail mountain bikes are obviously great for the trail, but you can also take them on the road, onto gravel, and pretty much anywhere else. Build this bike as a commuter or mountain bike.
- Stay Integrated: With the Bosch e-Bike Flow app, you can run everything from your phone. Keep an eye on your drive unit and battery status, change settings, and even prevent theft.
- Check the Upway Inventory: If you like Canyon e-Bikes, Upway is a great place to look. We buy used Canyon electric bikes and refurbish them to sell them for a discount.
