The Tern HSD is shorter than a regular bike, and even folds into a more compact package. Don’t let this make you think that it is any weaker than other cargo bikes. It can still carry up to 80 kg while remaining compact for city life.

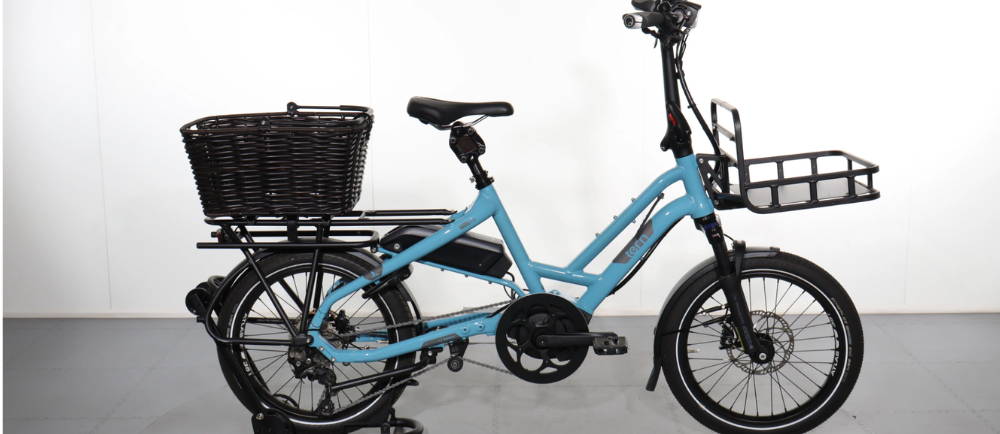

Tern HSD E-Bike Review
Written by: Nick Cowie | August 4, 2026 | Time to read: 5 min
The size of the Tern HSD doesn’t tell the story at all. This short and compact electric bike delivers massive power while carrying heavy loads. It is designed to maneuver through and park in tight spaces, making it the perfect urban cargo machine.
More about the Author: Nick Cowie
Nick is a writer with seven years of experience in the cycling industry. In his free time, he enjoys swimming, Jiu Jitsu, and spending time outdoors.
The Tern HSD is one of the more practical electric bikes money can buy. It is made for hauling cargo, but does not forget what it is like to ride in the city. The HSD is far more compact than most cargo bikes and even features folding bike-like properties for easy parking and storage.
The Tern HSD is available as a Class 1 electric bike and in a Class 3 version, making it very powerful for its small size. Make sure you know your local laws before buying the Class 3 one. The HSD balances powerful cargo-hauling ability with city-focused agility.
👋 Welcome to Upway!
Upway is your top destination for buying and selling e-Bikes online. Discover your next e-Bike at up to 60% off retail prices, available in new or like-new condition.
Table of Contents
Tern HSD Specification Highlights
Available in different configurations, the Tern HSD is designed to get you and your cargo where you need to go. It comes in versions with different Bosch motor options, Class 1 and Class 3 configurations, and even different fork choices. All options are centered around compact function with sneaky power.
Key Specifications:
- Frame: 6061-Aluminium alloy patented design with vertical parking capabilities
- Fork: Custom Suntour or steel cargo fork (1.5" tapered, 70mm travel, thru-axle)
- Motor: Bosch Performance Line or Bosch Performance Line Sport mid-drive units
- Motor Torque: Up to 75 Nm
- Maximum Assistance: 20 mph / 32 km/h (US Class 1) or 28 mph / 45 km/h (US Class 3) or 15.5 mph / 25 km/h (UK/EU limits)
- Peak Power: 600 W (depending on exact Bosch motor configuration)
- Battery:Bosch PowerPack 545 Wh or 725 Wh lithium-ion smart battery options
- Optional Range Extender: DualBattery compatible configurations available
- Estimated Range: Up to 121 km / 76 miles on a single charge
- Tire Clearance: 20" x 2.4" (maximum tire width with integrated mudguards)
- Drivetrain: Shimano Deore 10/11-speed derailleur, Shimano Nexus Inter-5E hub with Gates Belt, or Enviolo Heavy Duty CVT hub with Gates Carbon Belt Drive
- Weight: 25.0 kg to 28.0 kg (depending on component tier and internal hub setup)
What makes the Tern HSD a great cargo bike?
Even if it wasn’t propelled by a powerful motor, the Tern HSD would make an excellent cargo bike. It is compact, strong, and practical in a city environment. Let’s take a look at some of its features before diving into the electronics.
- Frame: The Tern HSD is built around an ultra-stiff aluminum frame. The frame has a step-through design, making it easy to mount and maintain stability when carrying a heavy load. The front of the frame includes a suspension fork with 70mm of front travel, designed to cushion vibration from city roads.
- Storage: At the rear of the Tern HSD, you will find the heavy-duty Atlas rack. It is strong enough to hold 80 kg worth of cargo despite the small size of the bike. The 20-inch wheels are heavy-duty and puncture-resistant to deal with riding under such a heavy load.
- Practicality: To easily store your Tern HSD at home or in a tight parking space, it has a folding handlebar post and telescoping seatpost. This allows you to fold the bike completely flat or park it upright to save space and keep it protected. This is also perfect for people who live in apartments and don’t want a bike taking up their living space.
What electronic tech does the Tern HSD include?
The Tern HSD is more than just a heavy-duty and compact cargo bike. It is very technologically advanced and is centered around integration. Its powerful motor can deal with any obstacle, while its other smart features keep you safe and make it a ton of fun to ride.
- Drive Unit: Depending on your model, your Tern HSD will be powered by a Bosch Performance Line or Performance Line Sport motor. These powerful motors deliver up to 75 Nm of torque and can reach upt ot 28 mph if you unlock the Class 3 option. They deliver an assist ratio of up to 340% to get you and your cargo up speed hills.
- Integration: The HSD comes with a built-in rear brake light that glows brighter when braking. It pairs with a powerful headlight with high and low beam options. The integrated Bosch PowerPack battery offers over 545 Wh of range and is tucked away near the seatube.
- Smart Tech: The Bosch Smart System allows you to control the settings and status of both your Bosch motor and battery. HSD P-Class models come with an Intuvia 100 screen while S-Class models upgrade to the Kiox 300 screen. S-Class models also include GPS tracking, anti-theft alarms, and smart locking through the Bosch ConnectModule.
💸 Want to sell your electric bike?
- In case you didn't know yet, you can sell your e-Bike to Upway and get your cash in 3 simple steps.
- Want an estimation -> It takes only 2 minutes to complete this form
Who is the Tern HSD For?
The Tern HSD is for someone who regularly carries heavy loads around the city and needs a bike that can handle it. This bike’s rear rack can handle the weight of a fully-grown adult and still offer a 340% assist ratio. Fly up hills without a second thought while carrying cargo with the Tern HSD. Despite its small and compact size, it is one of the most powerful and reliable electric cargo bikes you can buy.
The Tern HSD is built for practicality, but it’s not all rugged and simplistic designs. Tern does a great job of combining cutting-edge technology with some of the most practical features in a cargo bike. The powerful Bosch motor and battery are controlled through an app, and integrated lights keep you safe and compliant. It even has safety features to keep the bike out of the wrong hands in a crowded city. The Tern HSD doesn’t make you choose between technology and practicality.
Frequently Asked Questions
Why is the Tern HSD so small?
What safety features does the HSD offer?
The Tern HSD has a step-through mounting frame, meaning you can keep cargo stable when getting on. It also has powerful integrated lights and anti-theft features to keep both you and your bike safe.
Can I get a discount on a Tern e-Bike?
Upway is a great place to find Tern electric bikes for way under MSRP. We buy and sell refurbished bikes and pass the savings along to you.
Key Takeaways
- The Tern HSD is stronger than it looks: With the ability to get up to 340% assistance compared to your normal pedaling while holding 80 kg, the Tern HSD is a small but powerful cargo bike that will get the job done.
- There are options for everyone: The Tern HSD is available in versions with different motor options, display options, drivetrain options, and even classification options. Consider your needs and budget to pick the right one.
- Upway can help you find the perfect bike: The Upway website is packed with refurbished electric bikes for way under retail price. Take a look at our different categories and find the perfect e-Bike for you.
