Pivot E-Bike Error Codes: Troubleshooting Guide

Written by: Tom Fortune | January 29, 2026 | Time to read 6 min

Pivot Cycles is known for premium mountain bikes. I've always liked Pivot bikes, ever since a Pivot was the first full-suspension mountain bike I ever rode. Pivot's electric lineup follows the same performance-first philosophy as its regular bikes. Pivot electric bikes are primarily electric mountain bikes, designed for trail, all mountain, and Enduro riding, where motors, batteries, and sensors operate under sustained load. Pivot also makes some very nice, lightweightelectric road bikes.

Most current Pivot e-MTBs use Bosch systems, which strongly influence how error codes appear and how strictly the bike responds when something is wrong.

You’ll commonly find:

• Bosch Performance Line CX on trail and enduro models, such as newer Shuttle AM builds
• Bosch Performance Line CX Race on higher-end, long-travel bikes like the Shuttle LT, offering increased assist and Race mode
• Bosch Performance Line SX on lightweight e-trail models such as the Shuttle SL, prioritizing agility and lower system weight

These motors are paired with:

• Bosch PowerTube integrated batteries, typically 750 Wh on full-power models
• Smaller integrated batteries around 400 Wh on SX-equipped bikes
• Optional Bosch PowerMore range extenders (~250 Wh) on compatible setups

Older Pivot e-Bikes, particularly early Shuttle models found on the used market, may still use Shimano STEPS EP8 systems with integrated batteries typically ranging from ~500–726 Wh. These bikes display different error formats and use different diagnostic tools.

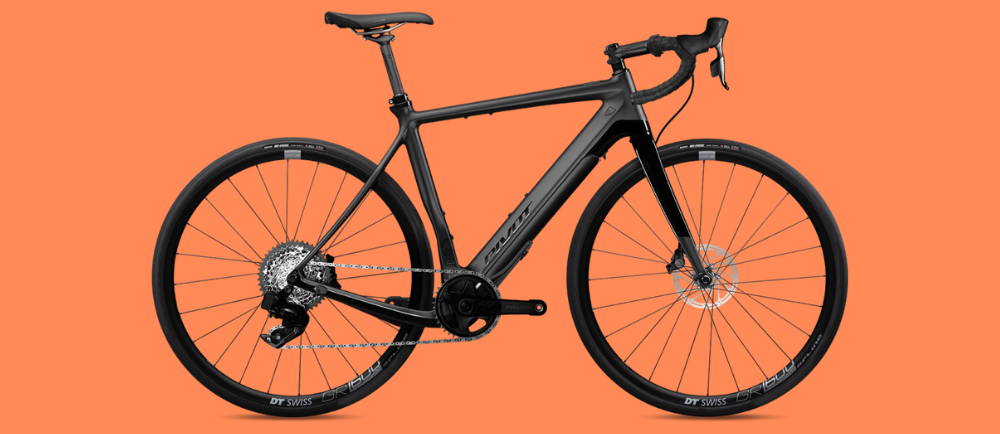

Pivot also uses Fazua motors on some lightweight e-Bikes, such as the Pivot E-Vault road bike. This is a lighter system that focuses on natural pedaling. They tend to show fewer numeric error codes in favour of more general system warnings that require dealer diagnostics.

I’ll focus on the Bosch error codes in this blog.

Understanding which drive system your Pivot uses is an important first step when dealing with error codes, because the motor platform directly affects how faults are detected and displayed. Modern Pivot e-Bikes are almost entirely built around Bosch systems, but not all Pivot models use the same motor or battery configuration.

Trail and enduro-focused models such as the Shuttle AM and Shuttle LT use Bosch’s full-power systems, most commonly the Bosch Performance Line CX or the higher-output CX Race variant. These bikes are designed for sustained climbing, aggressive terrain, and heavy loads, which means their error codes often relate to speed sensor accuracy, battery temperature, system authentication, or configuration integrity. These systems often operate close to the upper end of their performance during normal riding. This means they are quick to display an error message and disable motor assistance when something falls outside expected limits.

Lighter e-trail models like the Shuttle SL use the Bosch Performance Line SX, which prioritizes reduced weight and a more natural riding feel over maximum output. These bikes pair the SX motor with smaller integrated batteries, so riders may encounter power-limited warnings or battery protection messages sooner on long climbs or extended rides. These messages are not faults in themselves but reflect how the system manages energy and heat in a lighter package.

Pivot error codes appear when the drive unit, battery system, or on-board computer detects conditions outside safe operating limits. Because these bikes are designed for aggressive riding, the system continuously monitors:

• Speed sensor data
• Torque and pedal assist sensor input
• Battery voltage and temperature
• System configuration and firmware integrity
• Communication between the battery, drive unit, and display

If the system cannot confidently regulate power assistance, it will:

• Reduce pedal assist
• Disable assist entirely
• Display a fault or warning code

It will do these things intentionally, as they are critical safety features of the electric bike's system. It doesn't necessarily mean there has been a failure.

When a Pivot error code appears, riders may notice:

• Pedal assist cutting out mid-ride
• Power assistance refuses to engage at startup
• Error messages appearing on the display panel
• Assist disables under load or during climbs

In most cases, you can still pedal the bike normally without assistance, but repeated cut-outs mean that there is a problem that needs attention.

Because Pivot heavily relies on Bosch ebike systems, most Pivot error codes follow Bosch's structured numeric format. These systems are conservative by design and quick to disable the motor assistance when sensor, battery conditions, or system configuration can't be verified.

On Bosch CX and CX Race bikes, error codes often relate to:

• Speed sensor or spoke magnet alignment
• Battery temperature, voltage, or authentication
• Firmware or configuration mismatches
• Critical system protection events

On Bosch SX bikes, riders may see:

• Power output limited warnings during long climbs
• Battery-related protection alerts sooner due to smaller capacity

Shimano EP8 and Fazua-equipped Pivots may display entirely different error messaging. If the error format doesn’t resemble Bosch-style codes, it’s a strong indicator you’re dealing with an older Shimano-based bike or a Fazua system.

Cause: Cause: The drive unit has detected abnormal system behavior and has cut assist as a precaution. This may be triggered by transient sensor data, startup irregularities, or electronic issues.

Solution: Restart the bike using the power button, then retest. When a Pivot electric bike displays an error code, it’s the system protecting the motor, battery, or sensors long before a small issue becomes a major failure.

Cause: One or more sensors inside the drive unit are reporting implausible values. This may involve torque sensors or pedal assist sensors.

Solution: Restart the system. Persistent errors require professional inspection.

Cause: Further sensor inconsistencies have been detected, preventing safe motor assist.

Solution: Dealer support is required.

Cause: Sensor data is outside allowable limits. Assist will not engage.

Solution: Professional diagnostics are required.

Cause: A likely hardware-level failure involving motor sensors or internal electronics.

Solution: Dealer inspection is required.

Cause: The system has detected a malfunction that may involve firmware or internal electronics.

Solution: Firmware checks or dealer diagnostics are required.

Cause: Critical drive sensor failure has been detected.

Solution: Assist is disabled until the dealer inspection.

Cause: The battery and drive unit are not communicating reliably. This may involve connectors or internal electronics.

Solution: Power off the bike and, if possible, reseat the battery. Persistent issues require dealer inspection.

Cause: The connected battery is not recognized as compatible with the system.

Solution: Verify battery compatibility and contact a dealer.

Cause: The battery does not meet the required system standards.

Solution: Power assist is disabled. Dealer inspection is required.

Cause: An internal electrical fault has been detected within the battery system.

Solution: Stop using the battery and contact a dealer immediately.

Cause: Compatibility or wiring issues prevent battery-drive communication.

Solution: Professional diagnostics are required.

Cause: The electronic shifting system does not match the system configuration.

Solution: Dealer configuration check required.

Cause: The installed firmware is not supported by the system.

Solution: A dealer software update is required.

Cause: Cause: System configuration values are outside acceptable limits.

Solution: Dealer diagnostics required.

Cause: Firmware data appears corrupted or incomplete.

Solution: Dealer firmware restore required.

Cause: A configuration mismatch is preventing assist.

Solution: Assist remains disabled until corrected.

Cause: Invalid or missing speed sensor data, often due to spoke magnet alignment issues.

Solution: Inspect the speed sensor and spoke magnet. Realign and retest.

Cause: Speed sensor data is being disrupted, often due to a missing or misaligned magnet.

Solution: Reinstall or realign the spoke magnet.

Cause: Non-specific system irregularities detected.

Solution: Restart the bike. Persistent warnings require dealer diagnostics.

Cause: A critical failure has been detected.

Solution: Do not charge or ride the bike. Contact a dealer immediately.

Cause: An additional critical failure following a prior fault.

Solution: Dealer support required.

Cause: The system requests acknowledgment and a restart

Solution: Restart the bike. If the error returns, dealer inspection or software update is required.

As you can see from some of these codes, you can get back riding again without too much trouble. However, there are some cases where home diagnosis and repair won't cut it. For example, you should stop riding and contact the dealer if:

• Assist cuts out repeatedly
• Battery or drive unit error codes appear
• Firmware or configuration errors persist
• Any critical error code is displayed

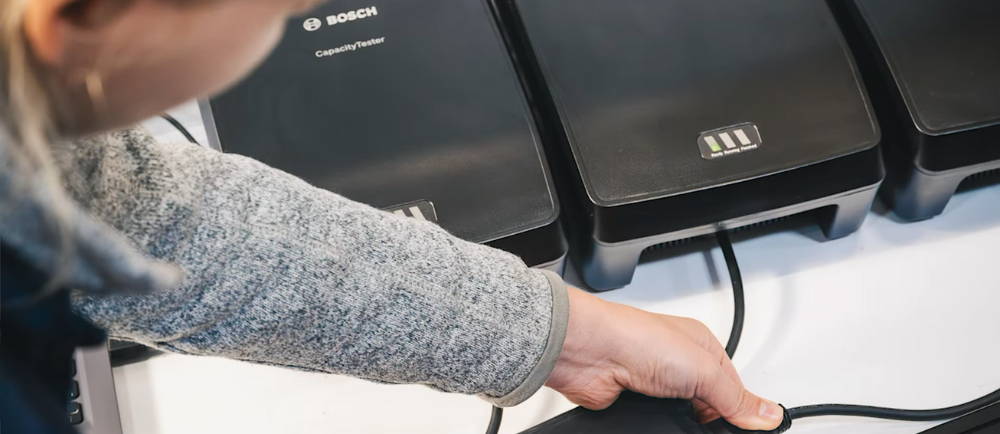

Bosch-based pivot electric bikes require manufacturer diagnostic tools that are only available through authorised dealers. So there is no chance you can fix some of these problems yourself.

Firmware and software errors can be mysteries wrapped up in enigmas if you don’t know what they are, so it’s worth going into a bit more detail.

Firmware and configuration-related error codes are among the most confusing for riders because they often appear without any obvious mechanical issue. On Pivot e-Bikes using Bosch systems, firmware controls how the motor, battery, sensors, and display communicate with each other. If any part of that communication chain is out of sync, the system may disable assist even though all physical components appear intact.

Firmware mismatches can occur after component replacement, battery swaps, or incomplete updates. In some cases, an update intended to improve performance or reliability may reveal an existing compatibility issue that was previously hidden. This is why some bikes begin showing error codes immediately after a service visit or software update.

Configuration errors occur when the system detects settings that do not align with approved system standards. This can include unsupported hardware combinations, incorrect calibration values, or corrupted configuration data. Because Bosch tightly controls its software ecosystem, these issues cannot be corrected by users at home. Diagnostic tools and authorized software access are required to restore proper operation.

If a firmware or configuration error persists after restarting the bike, further riding will not resolve it. These errors are designed to prevent unpredictable behavior and protect system health, which is why dealer intervention is necessary in these cases.

There are a few simple tasks you can do to reduce the likelihood of recurring error codes. Good maintenance habits will keep your Pivot electric bike in good working order for longer. It's a good idea to clean your bike properly and regularly, especially if you ride in muddy or dusty conditions. When you wash your electric bike, be careful to not spray electrical components with high-pressure water. Instead, clean them with a damp cloth, and make sure you thoroughly dry them. When you clean your Pivot electric bike, take time to inspect any visible cabling, the motor, battery, and LCD for damage. You can often catch small problems early before they turn into big issues.

If you get a Pivot electric bike error code, avoid riding it until you diagnose and fix the problem. You can cause more damage if you don't. If you're getting sick of persistent error codes on your e-Bike, maybe it's time for a change. Check out Upway's range of electric bikes.

You may find that many Pivot error codes appear due to environmental conditions you encounter during normal riding or general life. Electric mountain bikes are usually ridden in harsh environments, and even well -sealed electrical systems can be affected by water, dirt, heat, and vibration.

When water is forced into the sensor connectors, battery mounts, motor, or display, it can cause communication issues. These issues may not appear straight away, but they can crop up days later. So, be careful when riding through deep water and when cleaning your bike.

Heat can be another thing that can affect your Pivot e-Bike, especially on long climbs or on hot days. Sustained motor output can cause the motor and battery to overheat. This can lead to temporary power reduction or shutdown.

On the other hand, cold weather can present its own challenges. Low temperatures can affect battery chemistry and sensor accuracy. Sometimes, you'll get error messages during startup that clear once the system has warmed up. Issues caused by the environment you're in are usually temporary and will resolve on their own. However, don't ignore them just in case it's something a bit more serious.

Driving your bike to the trails can also play a role. Bikes carried on racks may experience vibration and repeated movement, which can loosen connectors or misalign sensors.
