Why Your E-Bike Motor Isn’t Working or Keeps Cutting Out

Written by: Chris Van Leuven | May 23, 2026 | Time to read: 6-7 min

A motor issue doesn’t always mean smoke, grinding, or a dead bike. Most of the time, it’s more subtle.

You might notice:

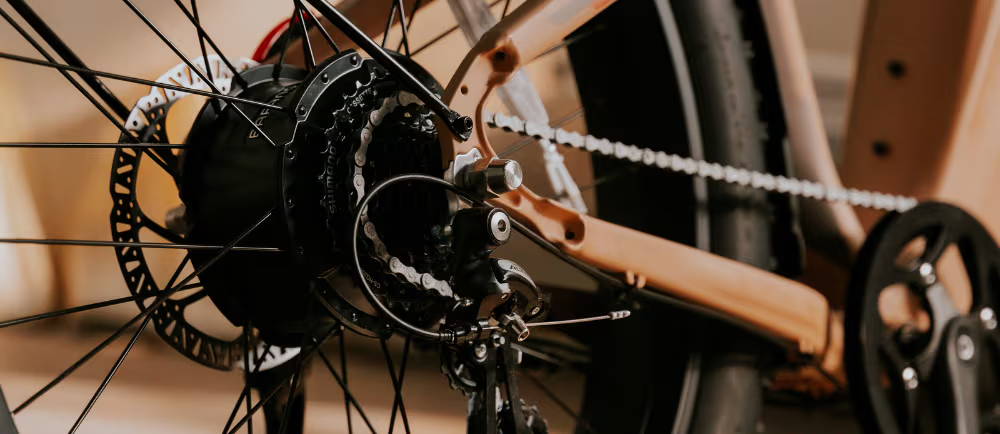

That last one changes the situation. A quiet cutout can be electrical. A new mechanical noise from the hub motor, mid-drive, drivetrain, or bearings is different. If the motor is making a bad noise, don’t keep testing it under load. It’s time to go to a shop.

The bike has to receive several signals before it provides assistance. It needs to know that the battery is connected, the rider is pedaling, the wheel is moving, the brakes are not applied, and the controller is communicating with the display and motor. It also has to know that the motor and battery are within safe temperature and voltage ranges. If one of those signals drops out, assist can shut off.

Most of the first things I’d check are simple:

The speed sensor is a good example. Bosch lists error code 503 as a speed sensor fault and advises restarting the system, then contacting a Bosch e-Bike dealer or your shop if the problem persists. Some Bosch 503 errors also reflect the real-world issues. When this happens, riders should check magnet alignment, sensor security, display contacts, and problems that appear after rough bumps.

That’s why an electric bike can feel like it has a dead motor even when the drive unit isn’t the problem. If the bike can’t clearly read speed, pedal input, brake position, battery status, or controller communication, it often shuts off.

Do the obvious checks before you start imagining a dead motor.

First, remove and reseat the battery if it’s removable. Make sure it locks into place. Look at the battery contacts and frame-side contacts. Dirt, moisture, or a slightly loose battery can cause cutouts, especially over bumps.

Next, look at the display and the controller wiring, and make sure everything looks right with a quick check. Examine for loose plugs, bent pins, crushed cables, or connectors that may have been tugged during transport. If the e-Bike was recently washed, ridden in heavy rain, or carried on a rack, moisture could be the problem.

Then check the speed sensor. Look for the magnet on the spoke and make sure it’s not out of alignment, in the rotor, or in the hub area, depending on the system. Make sure it lines up with the sensor and has not rotated away, slid down the spoke, or picked up debris.

Check the brake levers, too. Many e-Bikes use brake cutoffs that turn the motor off, and it won’t restart if it thinks the brakes are engaged. If a lever isn’t returning all the way, or if the sensor thinks the brake is engaged, the motor will not assist, and you’ll get no power. If the bike has a throttle, make sure it isn’t stuck, damaged, wet, or pressed during startup. On pedal-assist e-Bikes, restart with your feet off the pedals. Some systems can throw sensor errors if they power on while the pedals are loaded. But don’t open the motor, bypass sensors, cut into wiring, or keep testing a bike that smells electrical or makes a new grinding noise. It’s time to take your bike to your local shop.

Error codes help, but they are not universal, so check your user manual. Bosch, Shimano, Bafang, Mahle, Yamaha, Brose, and other systems use different code formats. The exact bike, display, motor, controller, firmware, and model year matter. Upway has a variety of blogs on error codes.

A few examples illustrate the issue:

Bosch 503 points to a speed sensor problem. Restart the system, check the magnet and sensor area, and contact a Bosch e-Bike dealer or your local shop if the problem persists.

Bosch temperature or communication faults can also reduce or cut assist. If the drive unit overheats, the system may limit output until it cools. If the display, battery, controller, or motor cannot communicate cleanly, assist can stop or act irregularly.

Shimano E010 is more general. Some Shimano manuals describe it as a system error, while Shimano’s error documentation points to an abnormality in the drive unit, with related E010 subcodes tied to drive-unit sensor abnormalities. Either way, I’d treat a repeated E010 as a shop-visit issue.

Bafang Error 30 is a communication failure. Bafang’s error-code PDF states that the motor cannot operate and that troubleshooting begins by checking connectors, cables, and connector pins.

That’s the pattern: a lot of “motor” problems are really signal problems. The bike stops assisting because it can’t communicate with the battery, display, speed sensor, brake sensor, controller, or motor harness.

I’d stop riding if the motor cuts in and out repeatedly, makes a new grinding noise, smells electrical, gets unusually hot, or shows the same motor, controller, battery, or communication error after a restart.

Also, stop if assist disappears on climbs or under load in a manner that feels sudden and repeatable. That can point to a voltage sag, a controller problem, overheating, or a connection that fails under stress. It may be time to have your bike serviced by your shop.

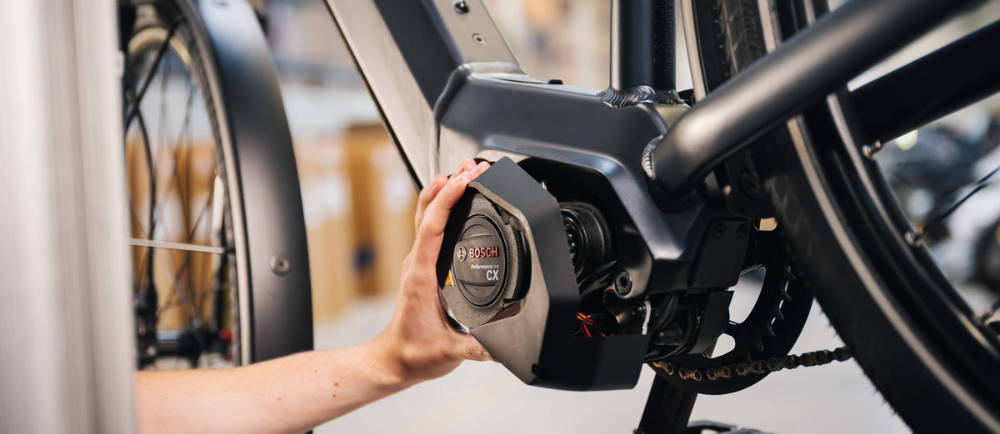

Simple checks are fine: battery seating, sensor magnet alignment, brake lever return, visible wiring, display contacts, and a clean restart. But that only works for so much. If the same issue returns, don’t keep clearing codes and riding. Get the bike to a shop that can run diagnostics for your drive system. That matters even more with mid-drive systems from brands like Bosch and Shimano, where dealer tools can read faults, software versions, battery data, and sensor behavior.

Motor problems are one reason I’d be cautious about buying a random used e-Bike out in the wild, and instead shop on Upway. On local listings, an electric bike can look great in photos and still have intermittent cutouts, wiring issues, speed sensor problems, battery communication faults, or a controller that only acts up under load. There’s often a reason someone is selling it.

That’s why I’d rather have the bike inspected by a professional before buying. Upway e-Bikes undergo a 50-point inspection and reconditioning, and include a 1-year warranty and a 14-day return policy. For motor systems, that matters because you are not just buying a frame and wheels. You buy the battery, motor, display, controller, sensors, wiring, and drive unit as a system.
