Some codes will go away after a bike reset and battery removal. These errors are often glitches or minor issues that have gone away. Certain faults just won't do this and will need to be approached and repaired by yourself or an expert.
Understanding QuietKat Error Codes: What They Mean and When to Stop Riding
Written by: Robbie Ferri | January 31, 2026 | Time to read 6 min
From motor faults to battery warnings, this guide breaks down QuietKat error codes in plain English.
More about the Author: Robbie Ferri
Robbie is a UK-based ultra cyclist, former bike shop worker, and qualified bike fitter. Deeply passionate about e-Bikes and adventure cycling, he combines hands-on experience with real-world riding to help others go further on two wheels.
Electric bikes are amazing tools for daily life, and over the past decade, we have seen significant technological improvements. One amazing feature of e-Bikes is that they have the ability to tell us when there’s something wrong, and these are called error codes.
These error codes help prevent your bike from damaging itself and can also alert you to potential issues. Reading these error codes can be challenging, and they often don’t tell you exactly what's wrong, but don’t worry, that's what we’re going to be doing today.
👋 Welcome to Upway!
Upway is your top destination for buying and selling e-Bikes online. Discover your next e-Bike at up to 60% off retail prices, available in new or like-new condition.
Table of Contents
The Good, The Bad, And The Ugly Error Codes
What Makes Quietkat E-Bikes Unique?
Complete List of QuietKat E-Bike Error Codes
Error Code 7: High Voltage Protection
Error Code 8: Hall Sensor Malfunction
Error Code 10: Motor Temperature Sensor Error
Error Code 12: Controller Sensor Error
Error Code 13: Battery Temperature Setting Error
Error Code 21: Wheel Speed Sensor Fault
Error Code 22: BMS Communication Fault
Error Code 30: Communication Error
Error Code 10: Communication Fault
Error Code 21: Abnormal Current
Error Code 22: Abnormal Throttle
Error Code 23 – Motor Phase Loss
Error Code 24 – Hall Sensor Fault
Error Code 25 – Brake Sensor Fault
The Good, The Bad, And The Ugly Error Codes
Error codes are not always going to stop your bike riding and force you to go to a mechanic. Some error codes will warn you that the motor could be running a little hot, which might reduce assistance, or that a sensor might not be sending good signals. These are good error codes that can be fixed on the road and will get you home.
Other error codes could stop the bike and require you to go home and get it fixed. A great example of this is a sensor that has broken, or communication between the controller and other components isn’t working properly. There are bad error codes, but they can be fixed at home.
The ugly error codes are when we start seeing internal problems in the battery, controller, or motor. These are going to require skilled hands to look at, and they are often not easy to attempt without the right tools. It’s good to understand that not all error codes mean a completely broken bike.

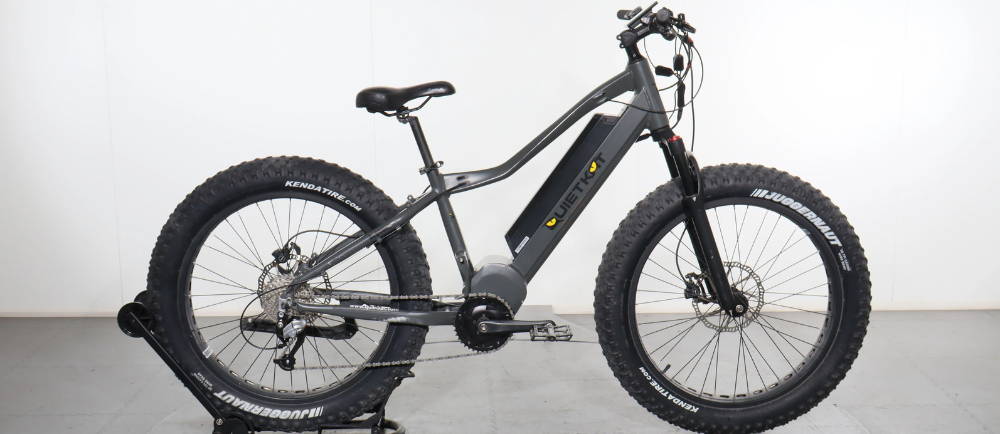

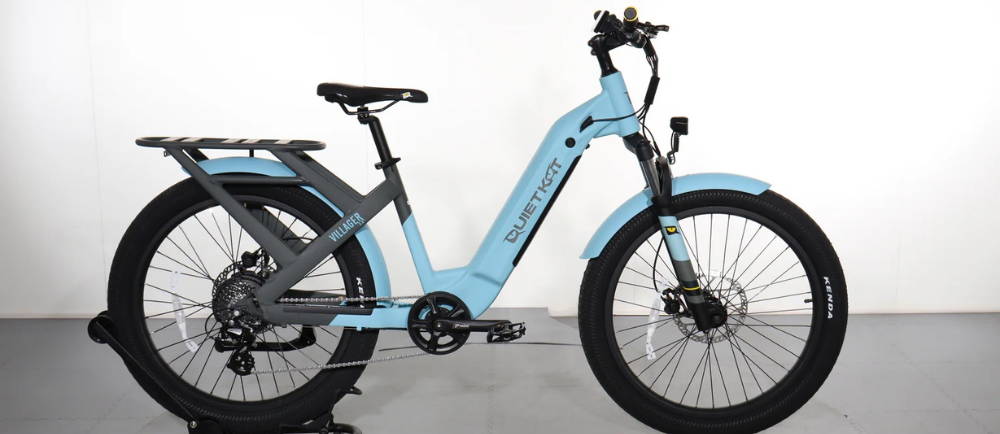

What Makes Quietkat E-Bikes Unique?
Before we start, it’s important to understand what makes the Quietkat bikes really quite special. Unlike many other brands, which are city-focused, Quietkat bikes are made for off-road trails and utilize fat bike tires with cargo bike space. They use very powerful motors, are quiet, fast, and incredibly versatile. These are not road or folding bikes.
Complete List of QuietKat E-Bike Error Codes
Here’s the exciting part. The error codes. Before we go further, it’s important to understand that, depending on the Bafang model, you may encounter repeated error codes. In this list, the error code is 10. We will explain more in the error code on how to know which one you are facing.
Error Code 7: High Voltage Protection
High-voltage protection prevents the battery from damaging itself. It has many causes, and quite often it’s a faulty battery. It can happen on the road and when charging.
First, stop the bike and let it cool down. Disconnect the battery and leave it to stabilize for a while. Return the battery, and that should fix any glitches. If it returns, the battery and controller need a professional inspection.
Error Code 8: Hall Sensor Malfunction
This is when the hall sensor in the motor isn't working correctly, preventing the motor from operating.
This often comes from a motor that has not undergone extensive servicing or from one with an internal fault.
Unfortunately, if that doesn't work, you can try a reset (Power Cycle) or contact a bike mechanic or a Quietkat dealer.
Error Code 10: Motor Temperature Sensor Error
The motor temperature sensor error doesn’t always mean the motor is overheating. It more often means the sensor is sending no data at all. The common cause is a faulty sensor.
Allow the motor to cool completely before starting again. If the error persists and occurs quickly, the sensor or motor may need professional repair.
Error Code 12: Controller Sensor Error
A controller sensor error occurs when the controller is struggling to communicate with the sensors. Often caused by a glitch, a faulty sensor, or a faulty controller.
Powercycle the bike and check the visible wiring to and from the controller. Continued issues typically require controller replacement, which can be challenging.
Error Code 13: Battery Temperature Setting Error
A battery temperature setting error means the battery either won't work because it’s outside the temperature parameters or it’s incorrectly configured in the BMS.
The first step is to bring the battery up to room temperature. After that, try it on the bike again. If it doesn’t work, the battery will need to be tested by an e-Bike expert.
Error Code 21: Wheel Speed Sensor Fault
This is when the speed sensor isn’t working or sending incorrect readings. Typically, a faulty or misaligned sensor.
Check sensor alignment and magnet position on the rear wheel. If it’s not passing the sensor, then center it. If that isn’t the problem, check the wiring and, if necessary, replace the sensor.
Error Code 22: BMS Communication Fault
This error occurs when the BMS (Battery Management System) cannot connect to the controller.
I would start by doing a reset. Then check the wiring and connections around the bike, especially the battery. If that doesn’t solve it, I'd see an expert for a diagnostic test.
🤝 Enjoy an even greater discount when you trade in your old electric bike today!
Click here for a price estimation
Error Code 30: Communication Error
The bike's components are struggling to speak to each other through the controller. Often caused by a wiring or controller fault.
The first place to start is to check the cables you can reach on the bike and the connections. Look for damage, moisture damage, or missing pins. Reset, update firmware. If nothing is found and the overall connections are not working, then it could be a new controller.
Error Code 10: Communication Fault
The bike is struggling to communicate between its components. Very similar to the error, just on a different Bafang motor model.
As above, check the cables you can reach on the bike and the connections. Look for damage, moisture damage, or missing pins. Reset, update firmware. If nothing is found and the overall connections are not working, then it could be a new controller.
Error Code 21 – Abnormal Current
When an abnormal current is detected, it indicates that the current is outside the required range for the bike to operate safely.
Reduce the assist level and load, and try to lower the cadence. If the problem keeps recurring, it would be a good idea to have the battery or the motor tested by an expert.
Error Code 22: Abnormal Throttle
The throttle is not working correctly. This, although sounding complex, is often caused by a sticky or broken throttle.
Inspect the throttle to ensure it is returning to its original position. If that doesn’t fix the error code, then replace the throttle altogether.
Error Code 23 – Motor Phase Loss
When a motor phase is lost, it usually indicates that one of the power cables is damaged or broken.
Inspect motor cable and connectors. Check for any damage or loose connections. If this doesn’t resolve the problem, then we recommend getting it checked by an expert.
Error Code 24 – Hall Sensor Fault
The hall sensor is inside the motor and communicates with the pedal sensor, telling the bike when to start and stop assistance.
There’s very little you can do, and we don’t recommend opening the motor up personally. Going to an expert to get a repair or a new motor is the only option.
Error Code 25 – Brake Sensor Fault
On an electric bike, when the brake is pulled, it sends a signal to stop the motor from working for safety. This error occurs when it’s stuck on.
Check brake levers and sensor wiring. Replace the faulty brake sensor if needed.
Frequently Asked Questions
Can I reset a QuietKat error code?
Is it safe to ride with an error code showing?
Some error codes it will let you ride with. The power is generally reduced when riding with these error codes. Anything very serious will prevent the bike from working at all. Riding with an error code isn’t an excellent idea long-term.
What causes communication errors on QuietKat e-Bikes?
Mainly loose connectors, damaged wiring, moisture ingress, or controller faults are common causes on QuietKat Bikes.
Key Takeaways
- QuietKat error codes are designed to protect the bike's components. They are not to stop your fun, just to make sure you don’t get hurt or end up with a very broken bike.
- Voltage, current, and temperature-related errors are common when pushing the bike to its limits. We often see bikes display error codes after spending a lot of time in full-assistance mode.
- Repeated communication errors typically indicate the issue isn’t the sensors but the controller. It’s good to think outside the box in these situations and always remember how vague the codes can be.
