Magnum E-Bike Error Codes: Quick Fixes and When to Contact a Shop
Written by: Chris Van Leuven | January 28, 2026 | Time to read 5 min
Magnum e-Bike error codes explained: what standard Magnum fault codes mean, quick fixes to try, and when it’s time to visit a professional e-Bike shop.
More about the Author: Chris Van Leuven
Chris is a writer, climber, and founder of Yosemite E-Biking in Mariposa, CA. When he’s not tackling Sierra Foothills trails or scaling rock walls, he’s crafting adventure stories with his boxer, Fenster. His work has appeared in Outside, Men’s Journal, Gripped, and Best American Sports Writing.

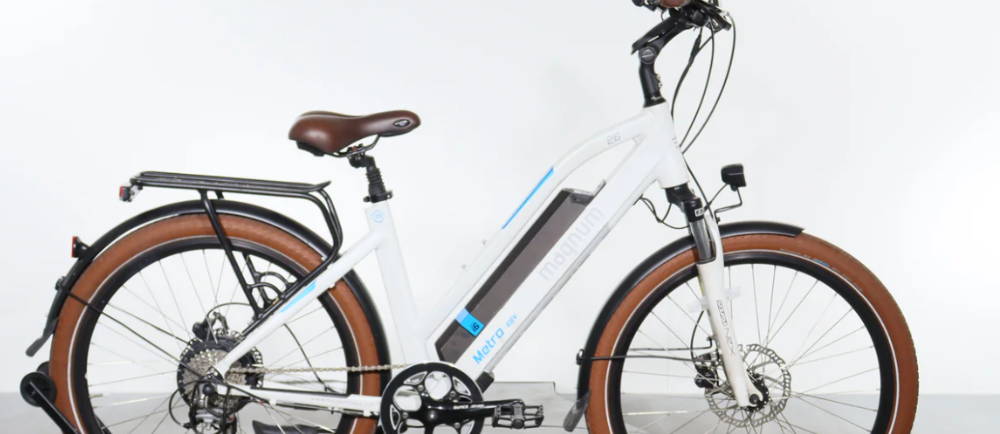

For more than a decade, Magnum has been quietly churning out e-Bikes that cover just about every corner of the market—cruisers, commuters, folding electric bikes, even a few light trail rigs. If there’s a throughline across all those models, it’s practicality. Think hub motors, throttles on plenty of builds, and electronics that your local shop can actually work on without a PhD in electrical engineering.
So when an error code pops up on your display, it’s not just some mysterious 'Magnum problem.' The bike is trying to tell you something specific—usually pointing a finger at the controller, throttle, motor wiring, sensors, brake cutoffs, or the way all those parts are talking to each other.
Here’s a quick reality check before we get too deep: Magnum has mixed and matched motor systems, controllers, and displays over the years. So, not every error code means the same thing on every bike.
What follows is a field guide to the most common Magnum-style error codes you’re likely to run into out in the wild, especially the 0x codes that show up on a bunch of their popular models.
👋 Welcome to Upway!
Upway is your top destination for buying and selling e-Bikes online. Discover your next e-Bike at up to 60% off retail prices, available in new or like-new condition.
Table of Contents
Magnum Reality Check: Which System Is Talking
Common Magnum Error Code Categories
Magnum Error Code 0x20: Controller Fault
Magnum Error Code 0x22: Throttle Fault
Magnum Error Code 0x23: Motor Phase Wire Fault
Magnum Error Code 0x24: Motor Hall Sensor Fault
Magnum Error Code 0x30: Communication Fault
Other Common Magnum-Style Error Codes You May See
Magnum Reality Check: Which System Is Talking
Most of the time, Magnum error codes fall into a handful of familiar buckets—
- Power and control are usually tied to the controller
- Inputs, such as the throttle or pedal assist signal
- Motor wiring, including phase wires running to the hub motor
- Motor sensors, like hall sensors inside the motor
- Brake cutoffs, meaning the system thinks you are braking
- Communication, meaning the display and controller are not talking cleanly
You might see different code formats depending on your display, but the underlying problems tend to be the same, no matter which Magnum you’re riding.
Common Magnum Error Code Categories
Before we get into the weeds with specific codes, it’s worth knowing how these issues usually show up in real life:
- Controller faults often appear immediately at startup
- Throttle or sensor faults may cut assist in and out
- Motor wiring issues frequently show up under load, like on hills
- Brake cutoff faults often feel like the motor is “dead,” even though the bike powers on
- Communication faults tend to appear after transport or bar rotation
Spotting these patterns can save you a lot of head-scratching—and possibly save you from tearing into your bike with a compact toolkit when you don’t have to.
Magnum Error Code 0x20: Controller Fault
What it means: The controller is detecting an internal failure or abnormal operation.
What to try first:
- Power the e-Bike completely off, then restart
- Check visible wiring near the controller for looseness, abrasion, or strain
When to contact a shop: If 0x20 returns immediately, diagnostics are usually required. Repeated restarts rarely fix controller faults.
Magnum Error Code 0x22: Throttle Fault
What it means: The throttle signal is abnormal or stuck outside its normal range.
What to try first:
- Make sure nothing is physically holding the throttle open
- Inspect the throttle cable for visible damage
- Power cycle and retest
When to contact a shop: If the throttle feels sticky or the code comes back right away, the throttle or its wiring should be inspected.
Magnum Error Code 0x23: Motor Phase Wire Fault
What it means: A problem exists between the controller and the motor phase wires.
What to try first:
- Look for crushed or rubbed-through cable sections
- If accessible, make sure the motor cable connection is fully seated and clean
When to contact a shop: If the code returns under load or you see damaged insulation, riding further can risk damage to the controller.
Magnum Error Code 0x24: Motor Hall Sensor Fault
What it means: The controller is not receiving a clean position signal from the motor.
What to try first:
- Power cycle once
- Inspect visible motor wiring for pinch points or abrasion
When to contact a shop: If 0x24 repeats, this is usually not a quick at-home fix and may involve motor or controller diagnostics.
Magnum Error Code 0x30: Communication Fault
What it means: The display and controller are not communicating reliably.
What to try first:
- Power cycle the system
- Inspect cable routing and connectors, especially near the head tube, where cables flex during steering
When to contact a shop: If 0x30 keeps returning, a shop can isolate the fault to the display, wiring harness, or controller.
Other Common Magnum-Style Error Codes You May See
Depending on which Magnum and display you have, you might see simpler codes—just numbers like 21, 22, 23, 24, 25, or 30, no 0x in front. Here’s where it gets a little tricky: sometimes the same number means different things on different bikes. When in doubt, use these as a starting point, but verify with your manual to be sure.
- Error code 21 – Often a speed signal issue or a voltage or current protection fault, depending on the system
- What to try: check the wheel speed sensor and magnet alignment, look for a loose sensor plug, reseat the battery, and let the system cool down if the bike threw the code under heavy load
- Error code 22 – Throttle signal issue
- Error code 23 – Motor phase wire issue
- Error code 24 – Motor hall sensor issue
- Error code 25 – Brake sensor or brake cutoff fault
- What to try: make sure both brake levers fully return, check that a brake lever is not slightly engaged, power cycle, then inspect the brake cutoff wiring for a loose connector
- Error code 30 – Display and controller communication issue
Bottom line: always match the code you see to your specific manual before you assume it means the same thing as another Magnum.
How to Prevent Repeat Errors
Most of the ways to keep these errors at bay aren’t glamorous, but they work:
- Keep connectors clean and dry
- Avoid high-pressure water around electrical components
- After transport, scan for pinched cables near moving parts
- Make sure brake levers return cleanly, and nothing is holding a lever slightly on
- If your bike uses a throttle, mix in pedal assist to reduce heat and long-term strain
Frequently Asked Questions
What is error 20 on Magnum?
What is error 21 on a Magnum e-Bike?
It depends on the display and controller. On many setups, it points to a speed signal issue or a voltage or current protection event. Start by checking the speed sensor and magnet alignment, then check battery seating and main connectors.
What is error 25 on a Magnum e-Bike?
Commonly, it is a brake sensor or brake cutoff fault. Start by releasing both brake levers fully, then look for a slightly engaged lever.
Key Takeaways
- Magnum error codes almost always trace back to the electrical system, not the frame.
- Common Magnum fault categories include controller, throttle, motor wiring, sensors, brake cutoffs, and communication.
- Codes that return immediately after a clean restart usually need shop-level diagnostics.
